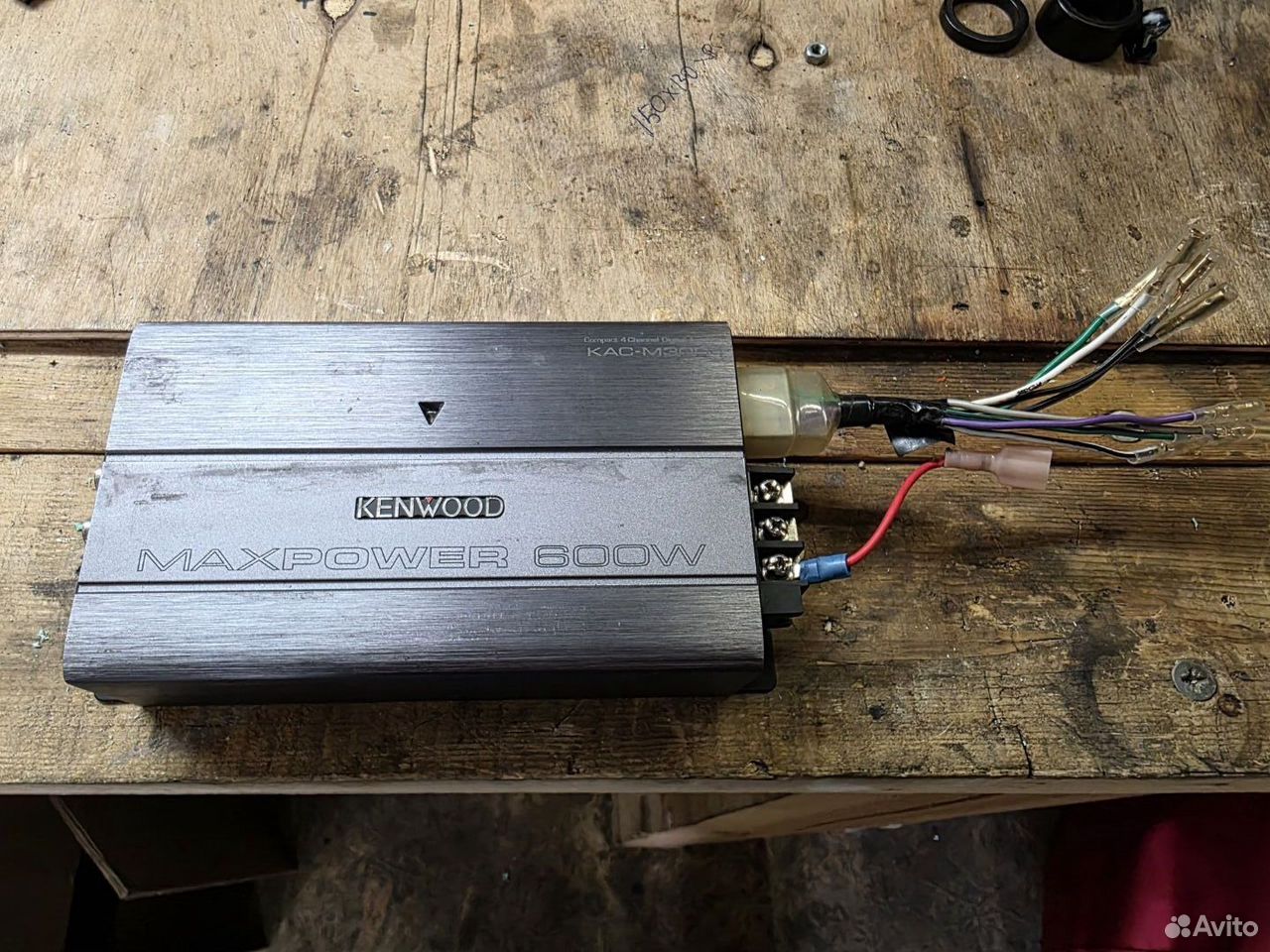

Очень компактный усилитель серии Marine от Kenwood. Отличие от обычных - контакты не подвержены коррозии, то есть прям для мото/водного транспорта создан.
Полностью рабочий аппарат.
Размеры 16.5 см х 4,5 см х 10 см
Title Compact 4 Channel Digital Amplifier
Amplifier Type Class D
CTA-2006-D Value Maximum Dynamic Power 65W at 4ohms and ≤ 10% THD + N
Continuous Power Output 50W at 4ohms and ≤ 1% THD + N
Signal to Noise 76dBA reference 1 Watt RMS
Maximum Power Output 600W
Specifications Signal to Noise Ratio 89dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-20kHz (+0dB, -1dB)
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged connection 4Ω to 8Ω allowable

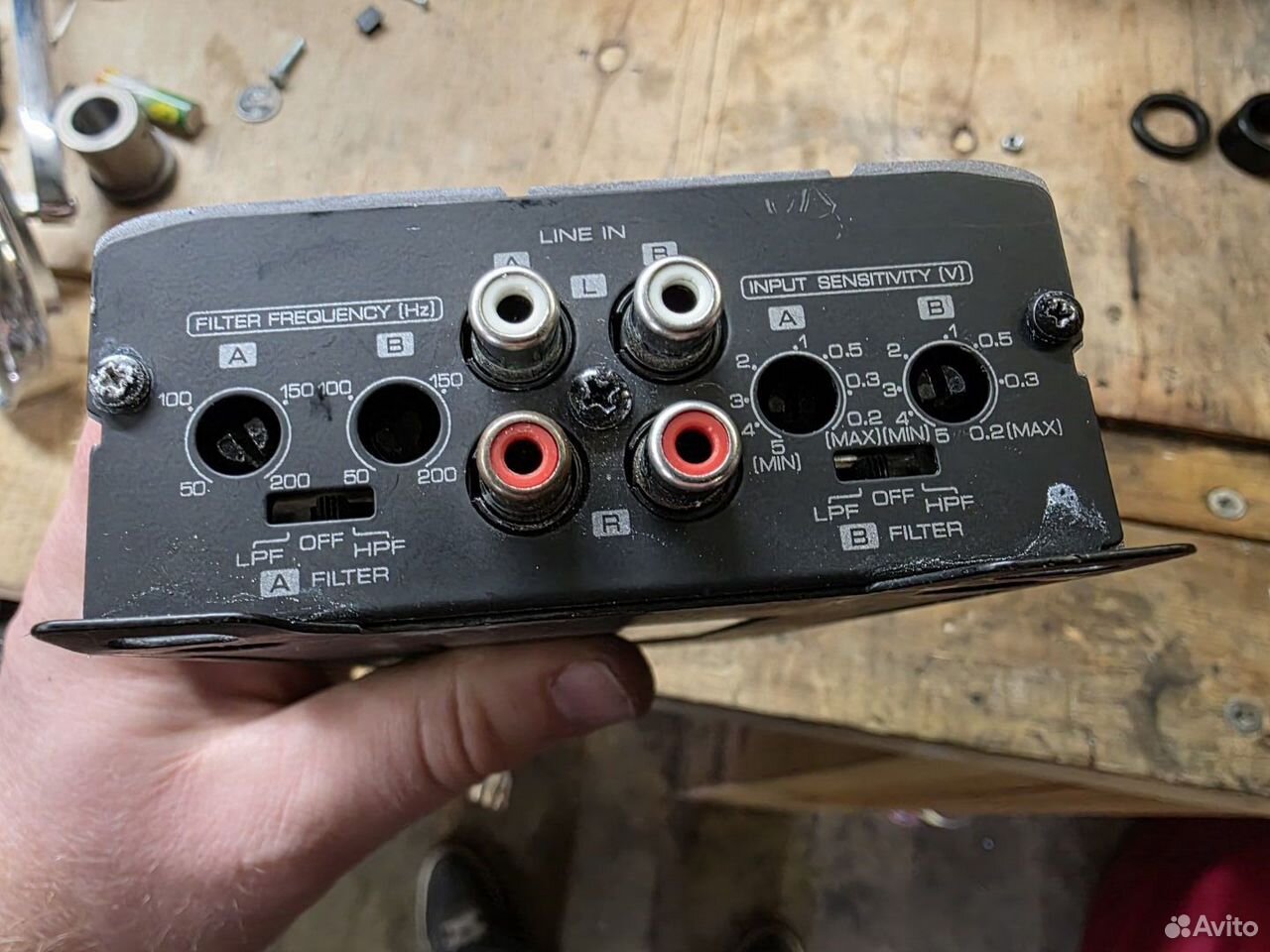

Audio Section Low-Pass Filter Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
High-Pass Filter Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
Filter Selector 1 LPF-OFF-HPF
RCA Input Sensitivity 0.2 V - 5.0 V
Speaker Level Input Sensitivity 4.0 V - 12.0 V

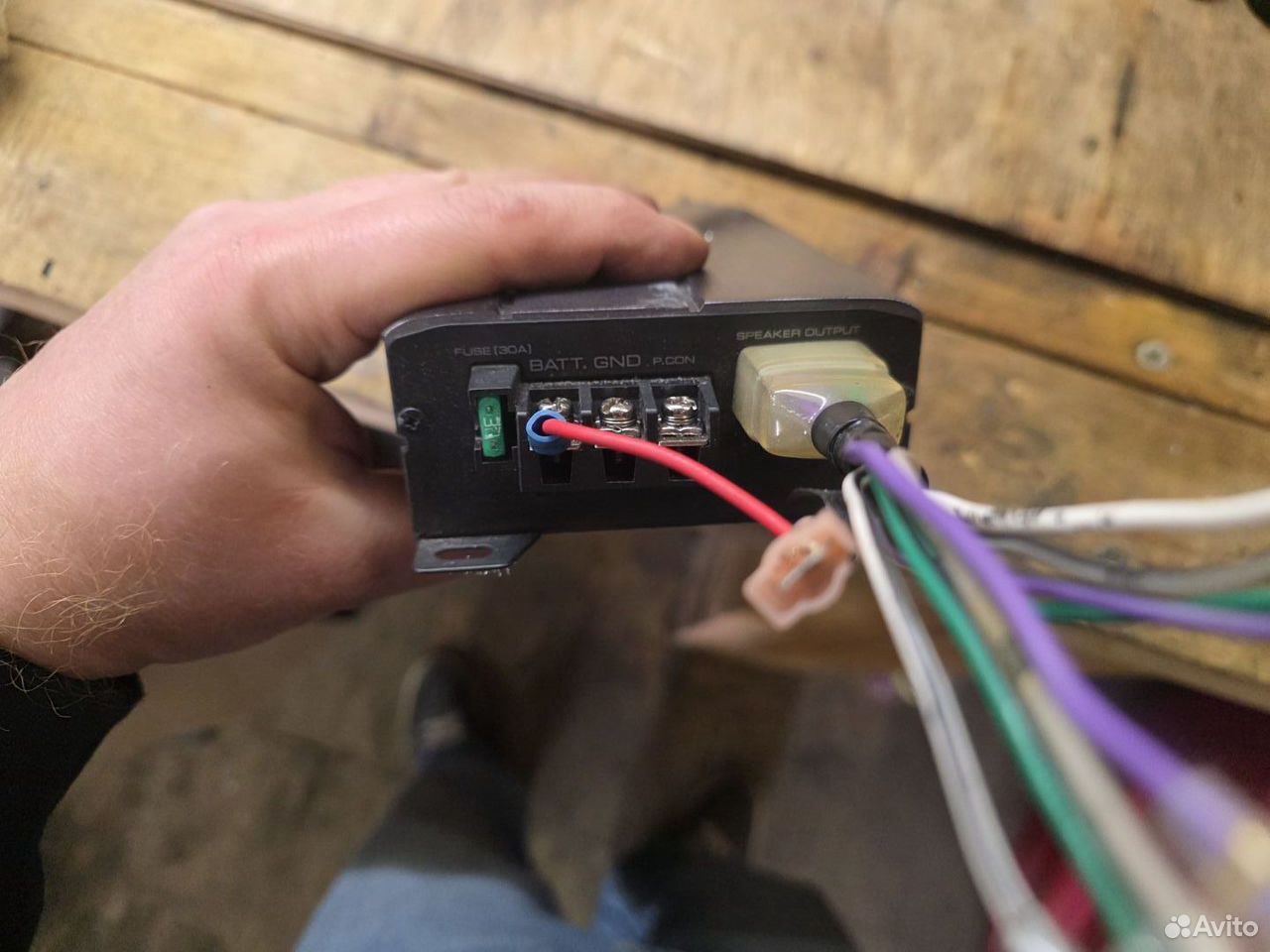

Terminals Battery & Ground Screw Type Terminal Block (Ni) (M4)
Speaker Output MOLEX Connector with AWG16 200mm Wire
Line In RCA (Ni)
General Dimensions(WxHxD) '6-1/2 X '1-3/4 X '3-7/8 inch
Weight(kg) -
Operating Voltage 14.4V（11-16V allowable）
Current Consumption 22 A
Key Features
CEA-2006 Compliant
Class D
2 Ohms Load Capability
Speaker Level Input
Signal Sensing Turn-on
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
Цена 10 000 рублей.
Находится в Петербурге. Отправлю куда угодно и чем угодно
